Gonzalez vs. plain midpoint: entropy in FP32 and FP64

use_gonzalez switches the discrete gradient of the implicit step between the Gonzalez form and the plain implicit midpoint rule (see picard_map! in solver.jl). Only the Gonzalez form has a mathematical proof of monotone entropy increase. This page records a controlled comparison of the two, for the Landau operator, with the GPU collision kernel in FP32 and in FP64.

The expectation going in was: in FP64 the choice barely matters; in FP32 Gonzalez does better. The first half holds; the second does not. In all 22 Landau runs — 12,400 time steps from $t = 0$ to the near-equilibrium tail at $t = 32$ — neither scheme produced a single step with $\Delta S < 0$, in either precision. The two schemes' entropies differ by no more than the two precisions' do ($\lesssim 2.6 \times 10^{-6}$ against a total rise of $0.42$), and plain midpoint is the cheaper one.

What separates the two schemes

Write one implicit step as $v_1 = v_0 + \Delta t\, \dot v(v_\text{mid}, \overline{\nabla} S)$ with $\Delta v = v_1 - v_0$. The collision operator's mobility is positive semi-definite, so with either gradient the discrete production $\overline{\nabla} S \cdot \Delta v$ is $\ge 0$. What differs is whether that production equals the actual entropy change $S(v_1) - S(v_0)$:

• Gonzalez, $\overline{\nabla} S = \nabla S(v_\text{mid}) + \lambda\, \Delta v$, picks $\lambda$ so that $\overline{\nabla} S \cdot \Delta v = S(v_1) - S(v_0)$ exactly. Monotonicity is then exact — but only at the fixed point of the implicit solve.
• Plain midpoint, $\overline{\nabla} S = \nabla S(v_\text{mid})$, misses the entropy change by the midpoint-rule remainder of the line integral:

\[S(v_1) - S(v_0) = \int_0^1 \nabla S(v_0 + s\,\Delta v) \cdot \Delta v \, \mathrm{d}s = \nabla S(v_\text{mid}) \cdot \Delta v + \tfrac{1}{24}\, \nabla^3 S(\xi)[\Delta v, \Delta v, \Delta v] .\]

The remainder is cubic in $\Delta v$, while the production is quadratic in the distance from equilibrium (with $\Delta v \propto \Delta t$ times that distance). So, provided $\nabla S$ is the exact gradient of the entropy being tracked, the midpoint defect shrinks faster than the production as the run approaches equilibrium and can only flip the sign of $\Delta S$ at large $\Delta t$ or where $\nabla^3 S$ is large.

For Landau that proviso holds: compute_entropy_gradient! returns $\partial S_h / \partial v_\alpha = -w_\alpha \nabla (M^{-1} r)(v_\alpha)$, which is the chain rule through $v \mapsto b \mapsto c = M^{-1} b \mapsto S_h$, and compute_r! uses the same integrand and quadrature as compute_entropy. The Gonzalez term therefore only corrects a third-order quantity.

For Lenard–Bernstein it does not: LB uses the clamped pointwise $\nabla f_s / f_s$ as its base gradient in both modes (see Lenard–Bernstein (2D)), which is not $\nabla S_h$. Its plain midpoint has a first-order mismatch between production and entropy change, and there the Gonzalez $\lambda$ term is what restores monotonicity.

Design

Two axes, everything else held fixed; all cells ran sequentially on one RTX 4090 (Runpod Community) at commit 386ee1f, so host-to-host variation cannot be read as a scheme effect.

abs_floor follows the precision. The solve stops when $\lVert r \rVert < \max(\texttt{tol} \cdot \lVert v \rVert, \texttt{abs\_floor})$, and here $\texttt{tol} \cdot \lVert v \rVert = 10^{-12} \sqrt{2 E N} = 2.85 \times 10^{-10}$. FP64 reaches that, so FP64 cells keep the preset abs_floor = 1e-10; FP32 cannot, and asking it to just burns iterations in stagnation exits, so FP32 cells use abs_floor = 1e-8. Within each precision both schemes share the same floor, so the scheme comparison is unaffected. To separate precision from tolerance, each cell also gets a probe with the other precision's floor (below).

Probes at $t = 6$. From each cell's step-2000 state, three 200-step branches that differ from each other in exactly one knob: base (the cell's own settings, DT $= 0.005$), the floor swapped (FP32 at 1e-10, FP64 at 1e-8), and DT $= 0.001$.

Near equilibrium. At $t = 6$ Landau is still far from equilibrium ($S_\text{eq} - S = 9.4 \times 10^{-3}$, production $\sim 10^{-5}$ per step), which is not where a midpoint defect would show. All four cells were therefore also branched from one late state — step 7100 ($t \approx 30$, $S_\text{eq} - S = 8.9 \times 10^{-4}$, production $\sim 1.4 \times 10^{-7}$ per step) of the long FP32 Gonzalez run sq-d04-gpu1k32-dt5e3-af1e8-3070-2026-10-04 — for 400 steps at DT $= 0.005$, plus an FP32 pair at DT $= 0.01$ as a stress test (the midpoint defect grows like $\Delta t^2$ relative to the production).

A step counts as unconverged when its final residual is at or above the effective tolerance, i.e. it left the solve through the stagnation exit.

Results

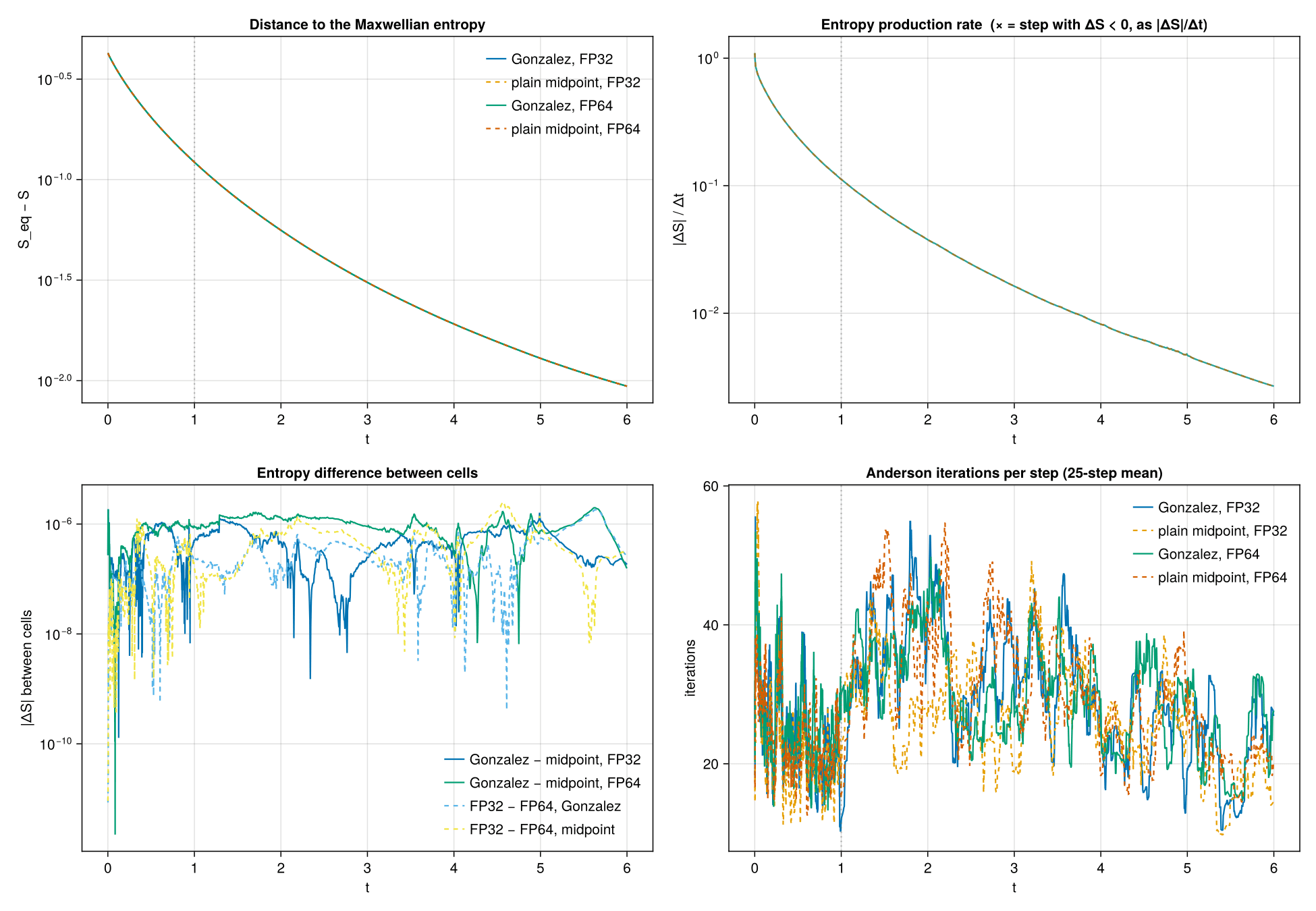

Main runs, $t = 0 \to 6$

How far apart the trajectories are, over the same steps:

The scheme gap and the precision gap are the same size: switching the discrete gradient moves the entropy no more than the FP32 kernel's roundoff and the non-deterministic order of its GPU reduction do. Energy is where precision shows — FP32 drifts by $6 \times 10^{-8}$, FP64 by $\lesssim 2 \times 10^{-10}$ — and there the scheme makes no difference either.

Probes at $t = 6 \to 7$

Asking FP32 for 1e-10 leaves every step unconverged at 5× the iterations and still produces no entropy decrease with either scheme: in the Landau runs an unconverged step has never shown up as an entropy drop. Loosening FP64 to 1e-8 changes nothing measurable either.

Near equilibrium, $t = 30 \to 32$ (all cells from one state)

Even 400× closer to equilibrium than the main runs, and at twice the step size, the smallest entropy increment stays near its typical value — no step comes close to zero. From an identical state the two schemes' entropy gain over $t = 30 \to 32$ differs by $1.7 \times 10^{-8}$ (0.03 %); the two precisions differ by $5.9 \times 10^{-8}$ (0.1 %).

Earlier runs, same statistics

This is the one place the schemes do behave differently, and it matches the mechanism above. In LB, every Gonzalez drop sits on an unconverged step — the discrete chain rule is exact only at the fixed point — while 178 of the 188 plain-midpoint drops are on converged steps: the first-order mismatch of the LB base gradient, surfacing once the production has decayed (from $t \approx 3.8$). Neither pattern appears for Landau.

Cost

Steps 0→2000 of each main cell (wall time includes about a minute of Julia start-up per phase):

Plain midpoint saves 11 % of the iterations and 15 % of the wall time in FP32 (each Gonzalez iteration also pays for an extra projection and entropy evaluation of $v_1$), and 2–4 % in FP64, where the $O(N^2)$ FP64 pair sum dominates. Near equilibrium it needed 9 % (FP32) and 24 % (FP64) fewer iterations.

Conclusion

• FP64: no difference that matters — as expected. Both schemes are monotone throughout, and their entropies agree to $2 \times 10^{-6}$.
• FP32: Gonzalez is not better. Both are monotone; the scheme gap is no larger than the FP32-vs-FP64 gap; plain midpoint is faster. FP32 shows up in energy conservation ($6 \times 10^{-8}$), not in the entropy, and not differently between the schemes.
• Why: for Landau the plain midpoint already uses the exact gradient of the discrete entropy, so the Gonzalez term corrects an $O(\lvert \Delta v \rvert^3)$ remainder that stays far below the production at every step here. Gonzalez matters where the base gradient is not $\nabla S_h$ — the LB operator.

Scope: one initial condition (sq_d04), $N = 40\,000$, DT up to $0.01$, the Landau operator only for the new runs. The Gonzalez guarantee is still the only one that holds without the "exact gradient" proviso, and its $\lVert \Delta v \rVert^{-2}$ denominator gave no trouble down to $t = 32$.

Reproducing

One cell, both phases (suffix and folder names as on S3, with _ → - in the folder):

P="parameters_LB_sq_d04.jl --collision_model=landau --use_gpu=true --snap_every=25"
K="--gpu_fp32=true --use_gonzalez=false --abs_floor=1e-8"   # FP32 plain midpoint
S=gzmid_mid32_4090_2026-10-08
julia main.jl $P $K --suffix=$S --N_STEPS=1000 --DT=0.001
julia main.jl $P $K --suffix=$S --N_STEPS=2000 --DT=0.005 --resume=auto

FP64 cells use --gpu_fp32=false --abs_floor=1e-10. Probes copy a cell's checkpoint_<suffix>_step2000.jls and conservation_history_<suffix>.csv to a new suffix and run with --resume=2000 --N_STEPS=2200; the near-equilibrium branches do the same from step 7100 of the long FP32 run with --resume=7100. The S3 folders are gzmid-{gz,mid}{32,64}[-{base,af10,af8,dt1e3}]-4090-2026-10-08 and gzmid-neq-{gz,mid}{32,64}[-dt1e2]-4090-2026-10-08.
